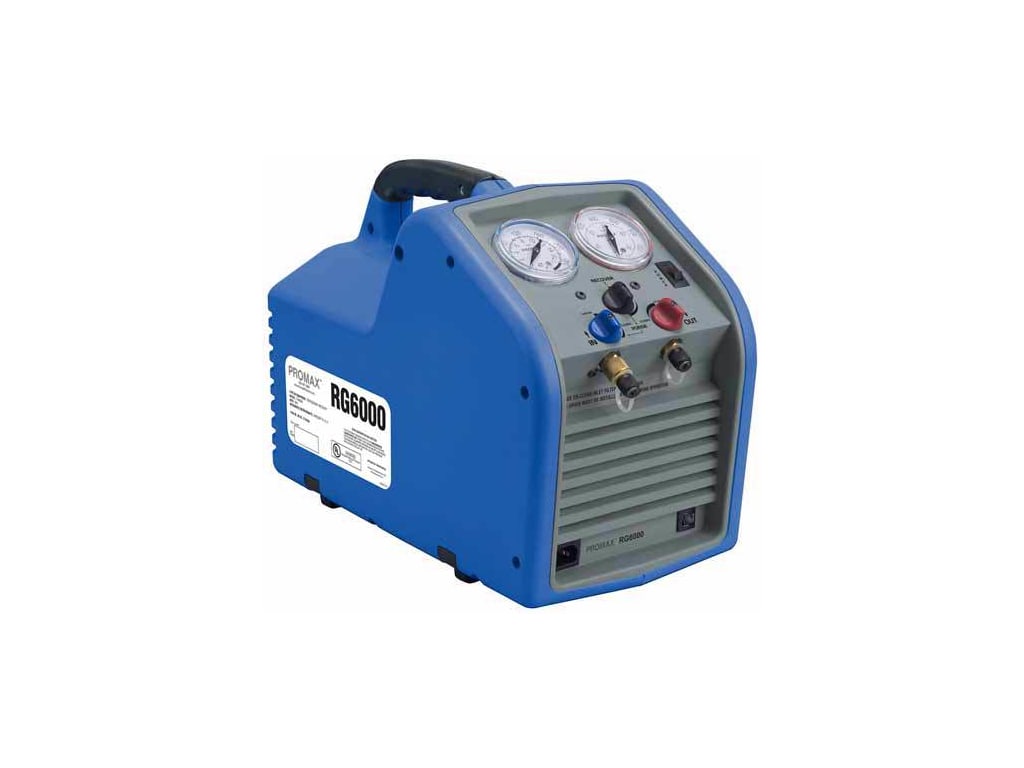

Promax RG6000 Portable Refrigerant Recovery Machine

PORTABLE RECOVERY MACHINE

Fast. Save time on each job with best in class recovery performance.

Easy to carry. Compact package that is small and light.

Rugged. Designed to withstand the rigors of daily use in extreme conditions.

Easy to use. Large oversized pressure gauges are easy to read.

Convenient. Self-purge manifold makes it easy to prepare the machine for the next job.

Field serviceable. Easy to disassemble and repair with kits available to replace wearable components, helping limit downtime.

Ergonomic handle design makes it comfortable to grip and move from site to site.

Internal filter helps protect the machine from harmful foreign objects.

Proprietary dual cylinder “oil-less” compressor is capable of handling both liquid and vapor.

High pressure safety shut-off switch. If system pressure rises above 550 psi, the unit shuts off. The shut-off switch automatically resets itself after pressure

Description

Advantage RG6000 Refrigerant recovery the only way

HVAC/R professionals know time is money. The more time spent doing one job means the less money earned performing another job. The new Promax RG6000 is design to help save time and put more money in your pocket.

Best Performance

The RG6000 is built for speed and does not disappoint. Designed to provide the best refrigerant recovery speeds in all conditions, the new twin cylinder design provides greater throughput of both refrigerant liquid and vapor.

Rugged and Tough

The RG6000 is designed and built to last even in the most extreme conditions. The case is designed for maximum durability. An oversized condenser helps the machine run cool in extreme temperatures.

Easy to Carry

The RG6000 is light in weight and includes a padded handle grip for easier carrying to and from the job site.

Service Made Easy

Everyone knows that even the best built products eventually wear out and need to be repaired. When that time comes with the new RG6000 the process is quick and simple. In as little as 25 minutes using some basic tools, the entire unit can be taken apart and rebuilt.

Manuals/Guides

Manuals

Manual

Spec Sheets

Data Sheet

TPI – DC710C1

Mastercool – 2 Way Manifold

Manufacturer Specs

Capabilities Push-Pull, Liquid, Vapor

Motor 3/4 hp, direct drive

Power 110-125 VAC 60Hz

Weight 27 lbs

Dimensions 17″ L x 9″ W x 12″ H

Approvals UL (ARI-740)

CE and TUV – pending

Warranty 1 year

Recovery Ratings per UL ARI-740-98*

lbs./min kg/min

Push/Pull Liquid Vapor High Temp Vapor (104°) Push/Pull Liquid Vapor High Temp Vapor (104°)

R22 15.72 7.78 0.55 0.46 7.13 3.53 0.25 0.21

R410A 16.76 6.04 0.35 7.60 2.74 0.16

R134A 11.13 5.05 0.40 5.05 2.29 0.18

R407C 16.01 6.94 0.53 7.26 3.15 0.24

Tech Specs

Test Equipment General Attributes

Warranty 1 YEARS

Product Weight 28.00 LBS

Product Height 13.60 IN

Product Length 17.75 IN

Product Width 9.95 IN

Shipping Height 13.60 IN

Shipping Length 17.75 IN

Shipping Width 9.95 IN
